Lama Metal Door and Window Frames are available in
both precision roll form or press form and in a variety of different
types of coated or prepared steels, namely, Zincanneal, Galvaneal, Galvalnised
Iron (Hot Dipped Galvanised) or Electro-Galvanised SECC-P to suit your
requirements and budget. Lama Metal Door and Window Frames secure a
fix for timber, metal and plastic doors, where strength and durability
is crucial. Our frames are used extensively across the nation and are
preferred to timber frames for their cost effectiveness in the long
run and also much more practical advantages over timber door frames.
Lama Metal Door and Window Frames are easily fitted during construction
or can be retrofitted, more versatile, stronger and more resilient,
provide an excellent surface for painting, and form an integral part
of the wall. All corners of Lama Metal Door and Window Frames are Mitred,
Tagged, Welded and Treated. Lama Metal Door and Window Frame materials
are imported from overseas and are of premium quality. We can also provide
you a copy of the material Mill Certificate if required.
METAL DOOR FRAME
Arch Frame
Material Thickness: 0.8 - 1.0mm |
Budget Frame
Material Thickness: 0.8 - 1.0mm
(Double Rebate)
|
Standard Frame
Material Thickness: 0.8 - 1.0mm
|
|
 |
 |
SPECIFICATIONS |
MATERIALS:
- Zincanneal / Galvaneal G2 ZF100 Phos Dry
or equivalent.
- Electro Galvanised SECC-P
|

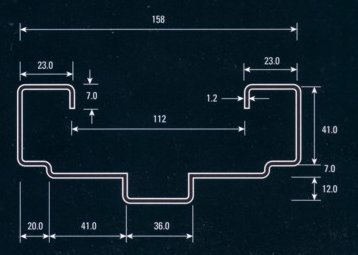

ROLLFORMED & PRESSBRAKE PROFILE:
Head and Jabs Deluxe 8 -14 fold profile. Available from 80mm
- 120mm back opening. Mullions slotted to conceal hinge back plate. |
CORNERS:
Tagged, mitred, welded and treated. |
HARDWARE:
Hinges, plated 100mm loose pin slotted and welded into verticals
3 per 2065mm doors. Buffers 2 per closing jamb. Welded mortar

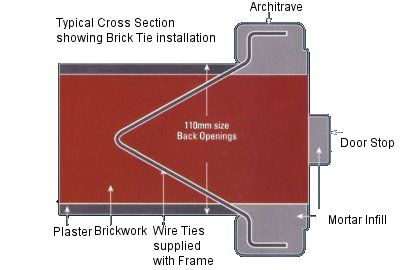

guard. Adjustable striker plate. Brick ties: 8 ties per frame.
Frames are supplied with identification for left hand hinge or
right hand hinge.
LAMA reserves the right to alter specifications in line with
product development without notice. |
STOCK SIZES AVAILABLE:
Single leaf door - 3 hinges.
Double leaf door - 6 hinges.
Overall frame size:
- 2135 x 765mm
- 2135 x 915mm
Special sizes can be manufactured on request provided volume
exceeds 100 frames.
|
..................................................................
METAL WINDOW FRAME
Sectional Details of louvers mounted on Lama Metal Window Frame |
Material Thickness: 0.8 - 1.0mm |
SPECIFICATIONS |
MATERIALS:
- Zincanneal / Galvaneal G2 ZF100 Phos Dry
or equivalent.
- Electro Galvanised SECC-P
|
PRESS BRAKE PROFILE:
Corners are tagged, mitred, welded and treated. |
METAL WINDOW FRAME:
- Adjustable louver either single or double control.
- Fixed glass louver holder.
- 12mm diameter mild steel security bar.
- Optional
|
STOCK SIZES AVAILABLE:
- Lama reserves the right to alter specifications in line with
product development without notice.
- Other special window frame size are available upon request.
|
